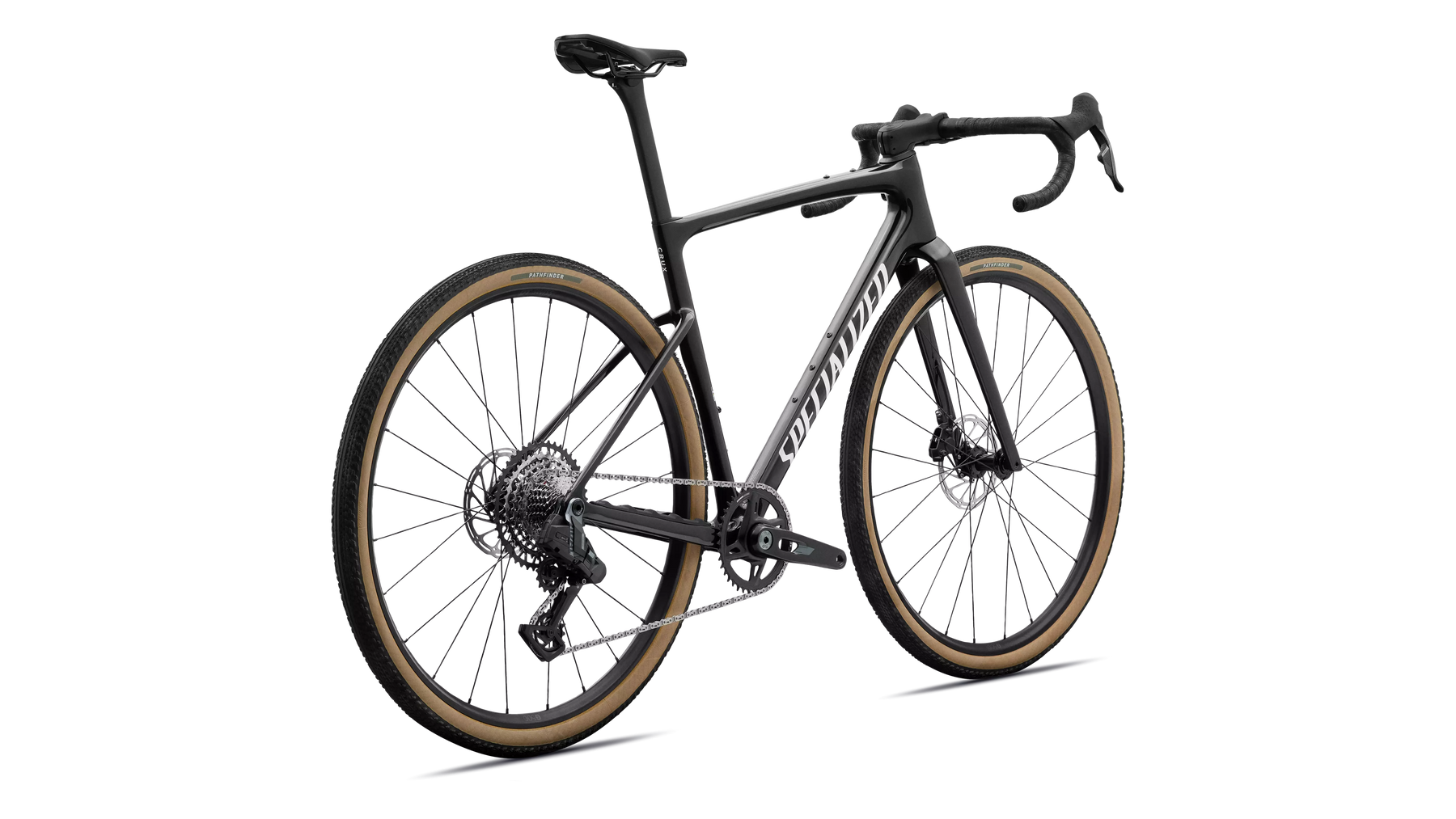

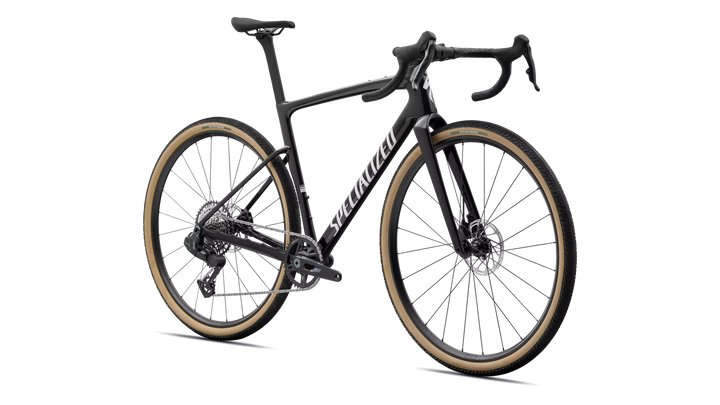

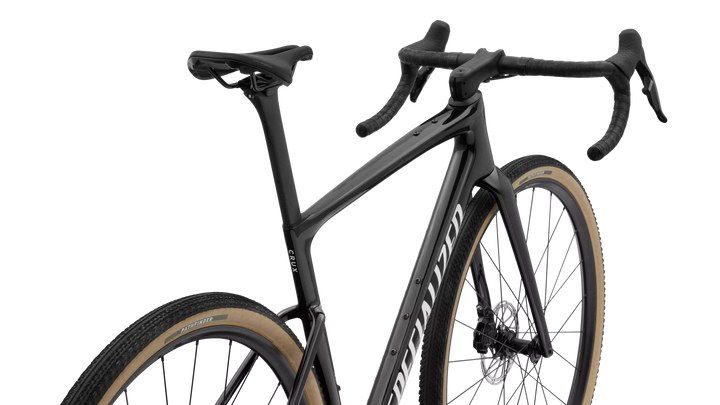

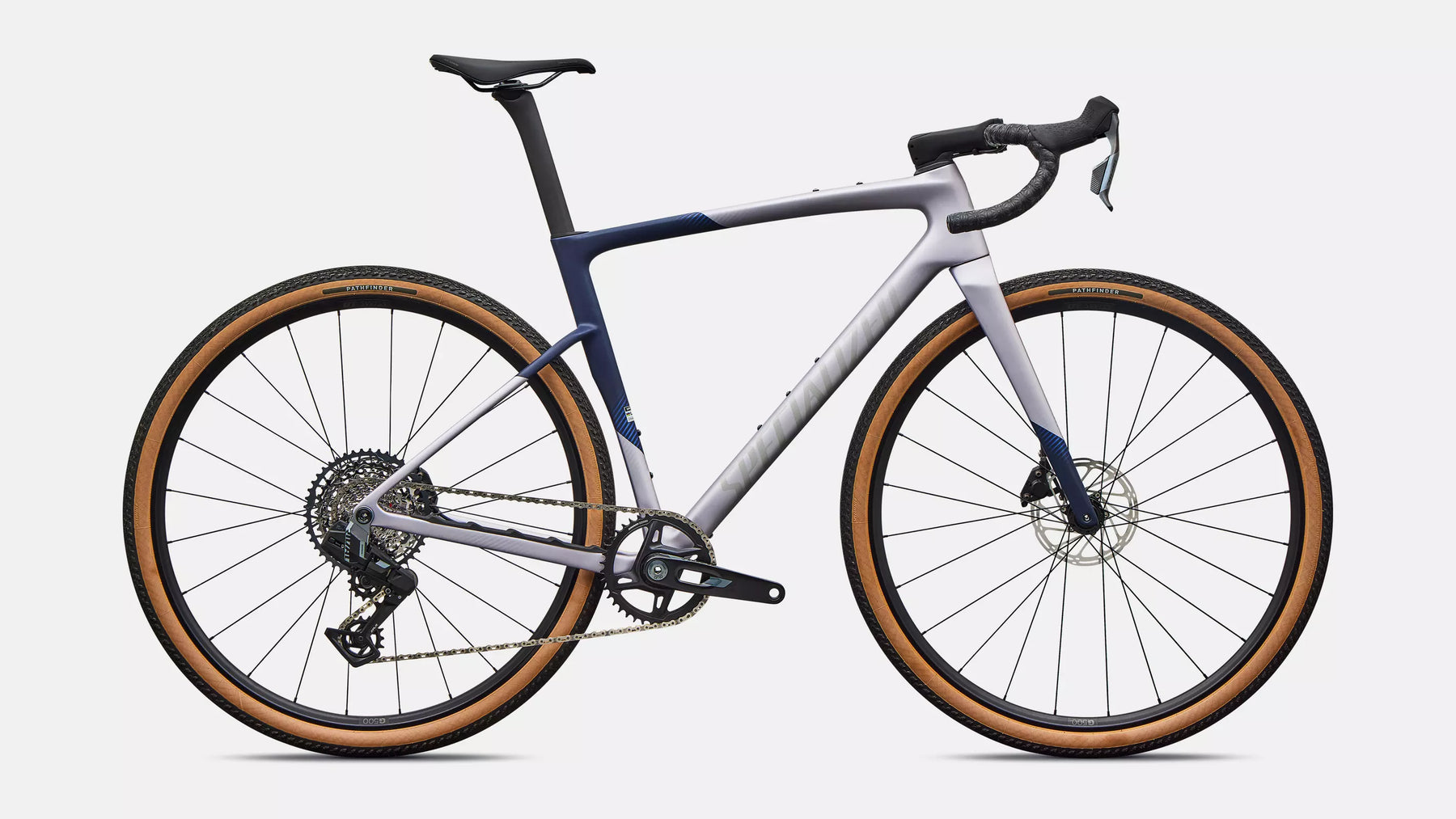

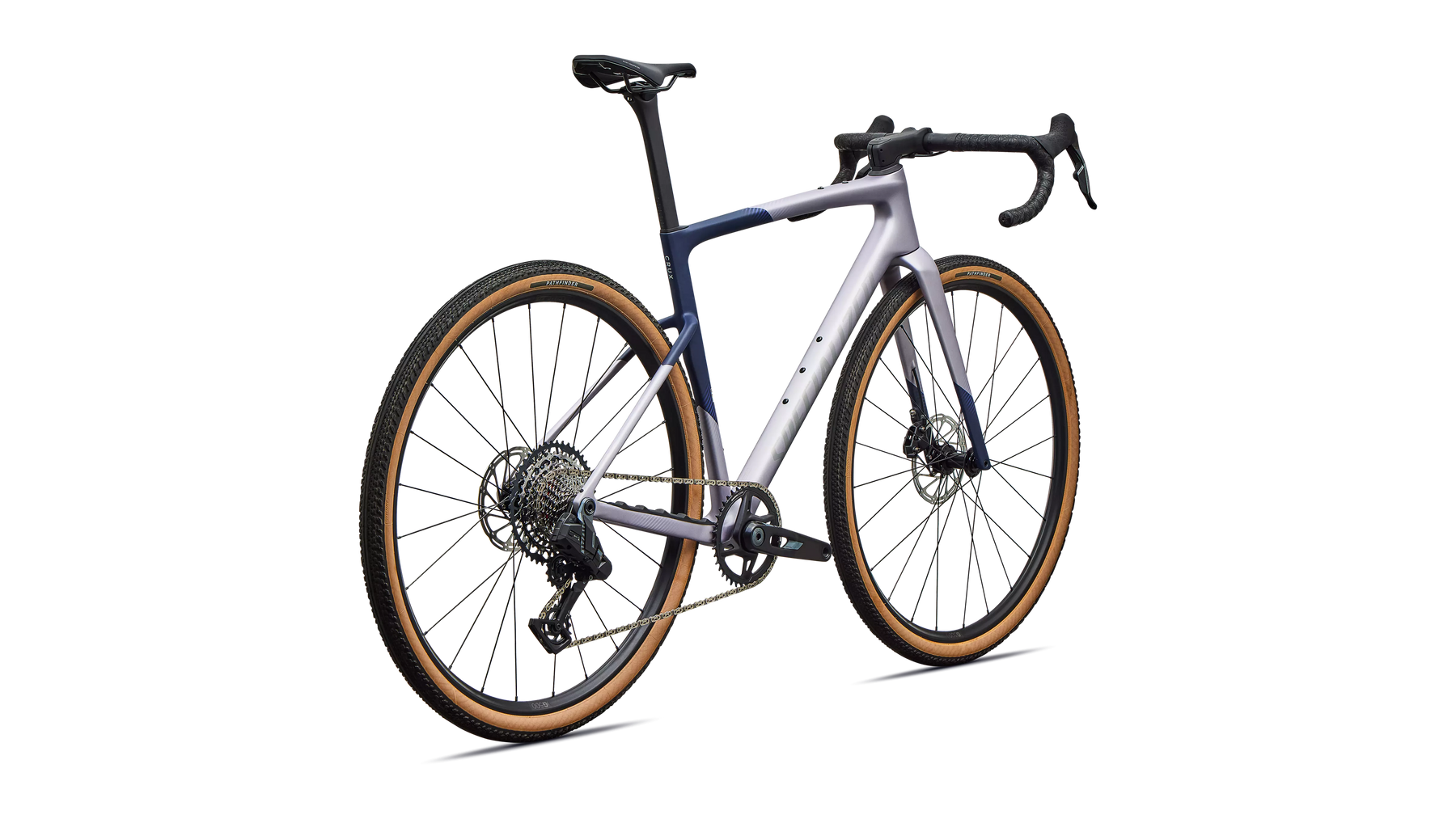

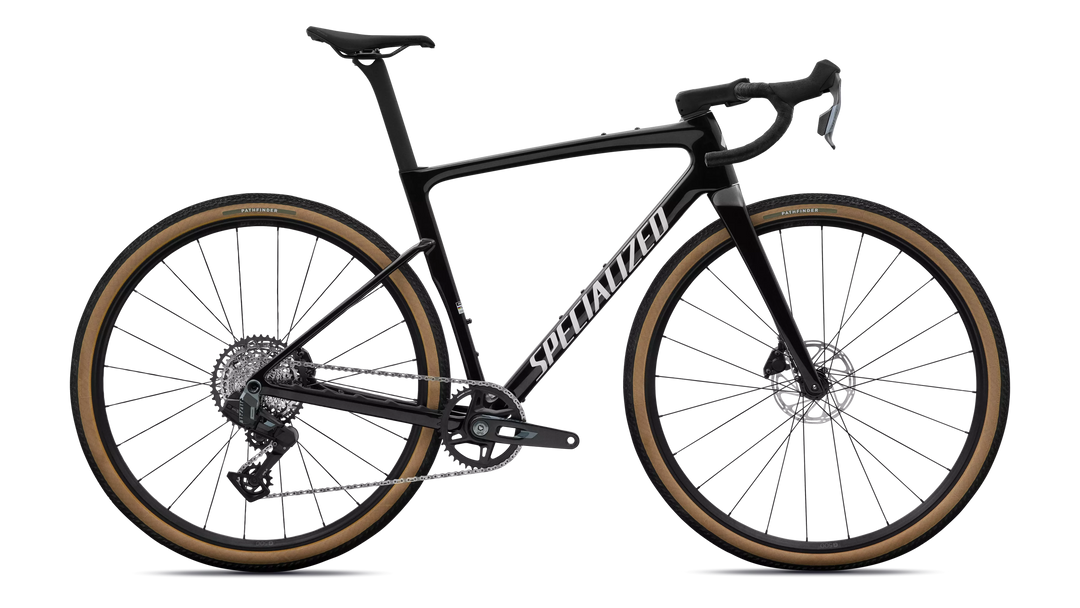

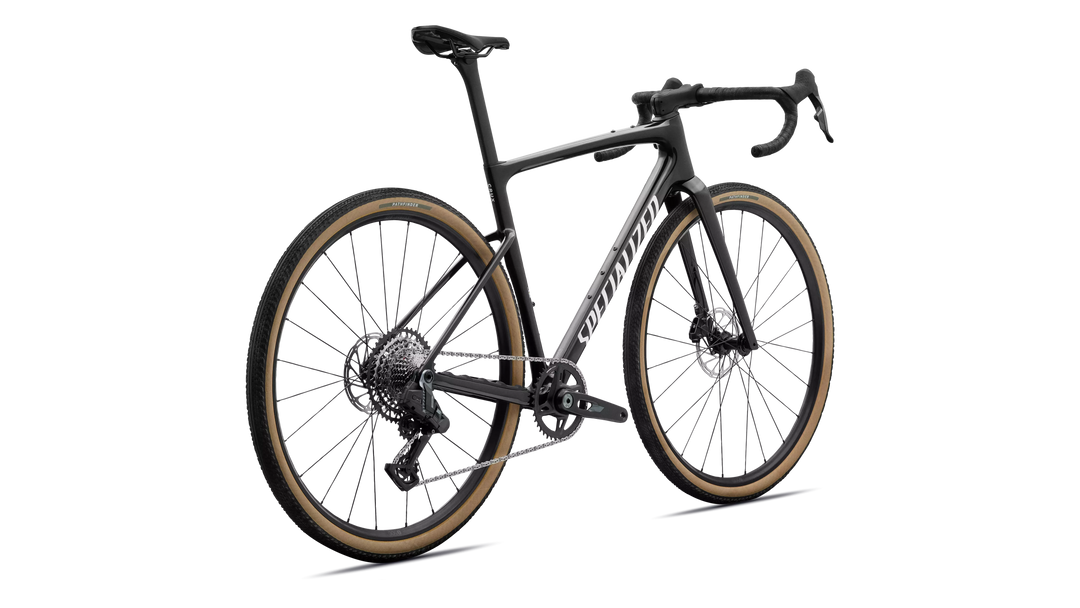

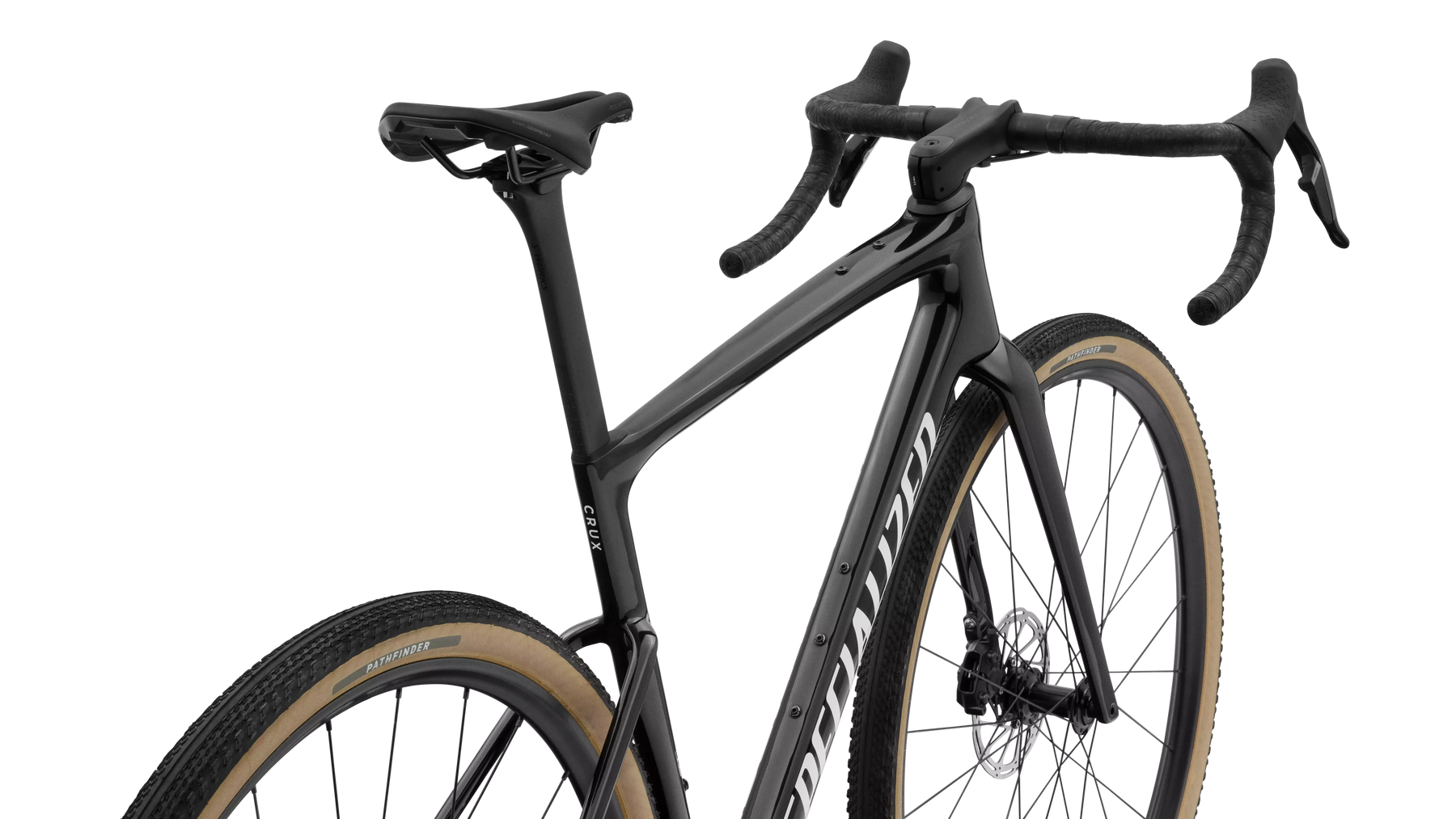

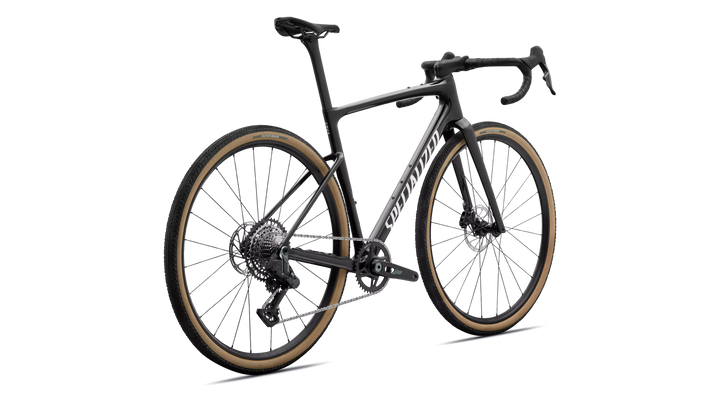

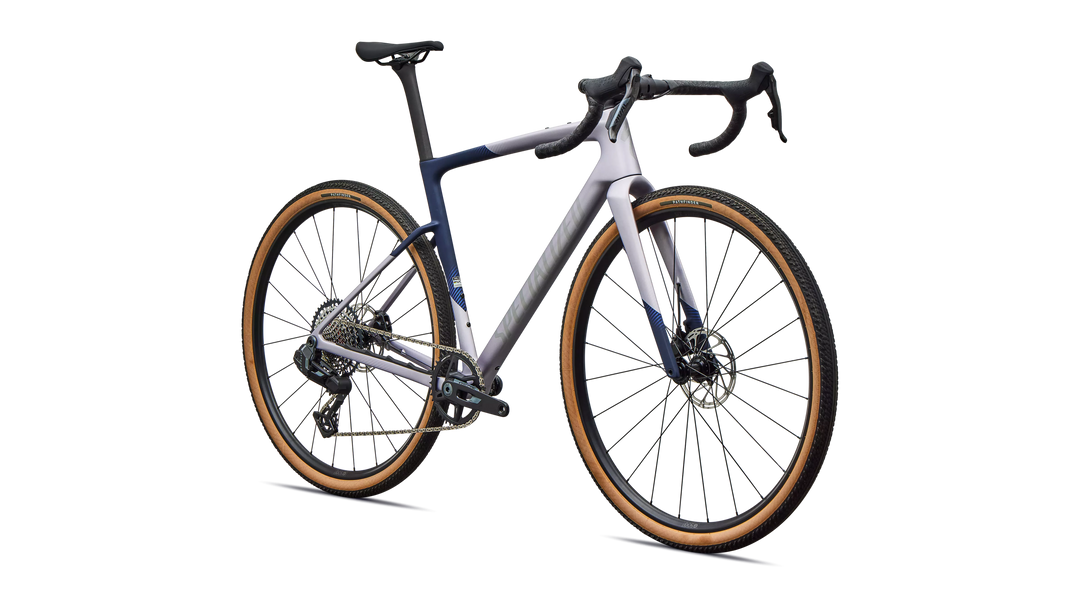

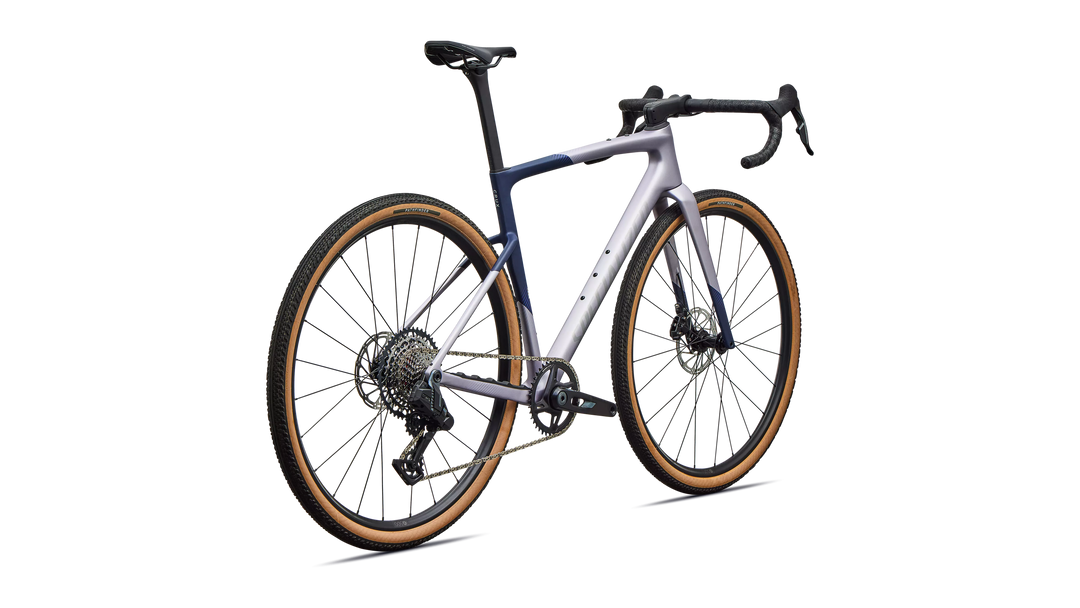

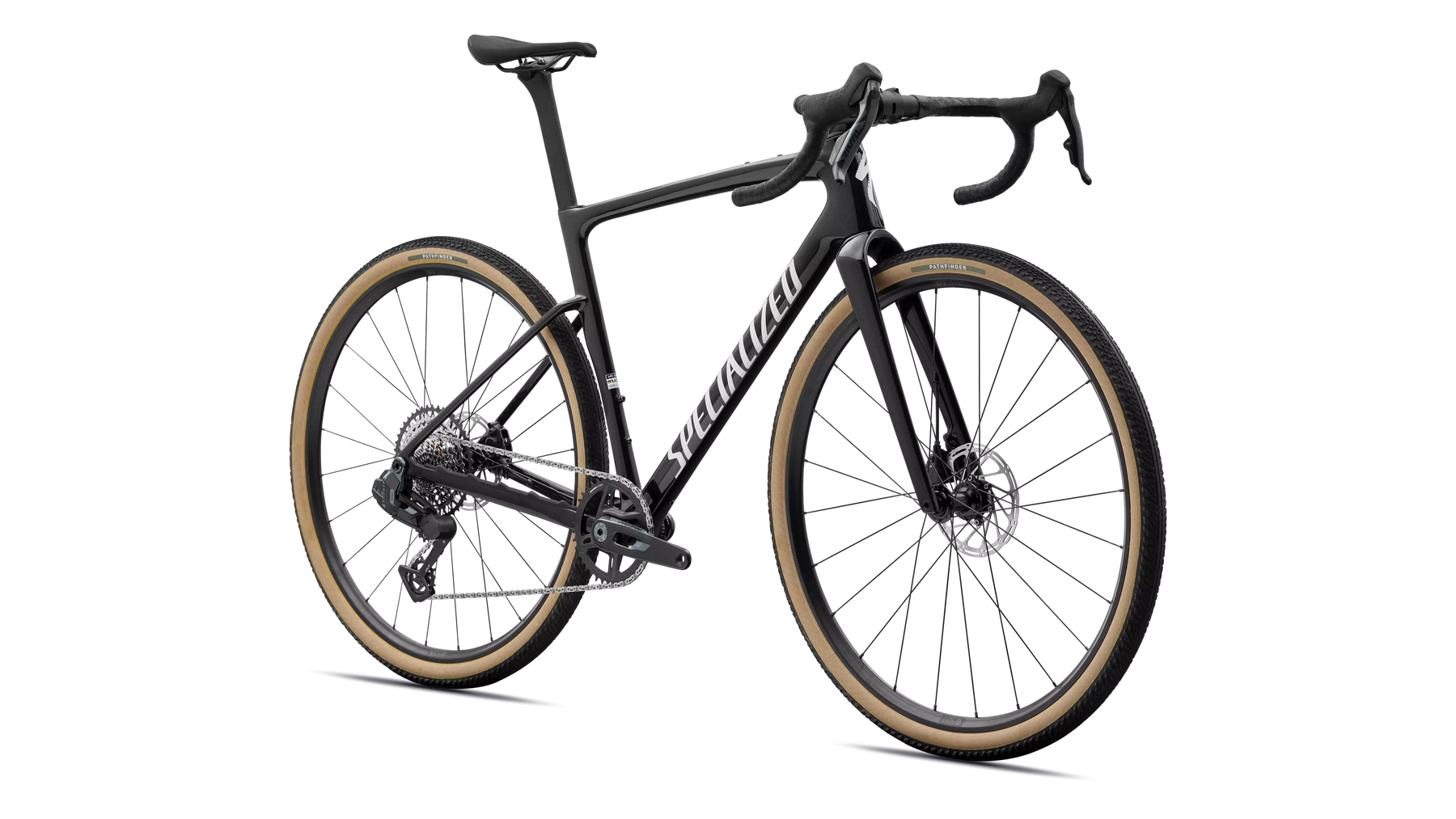

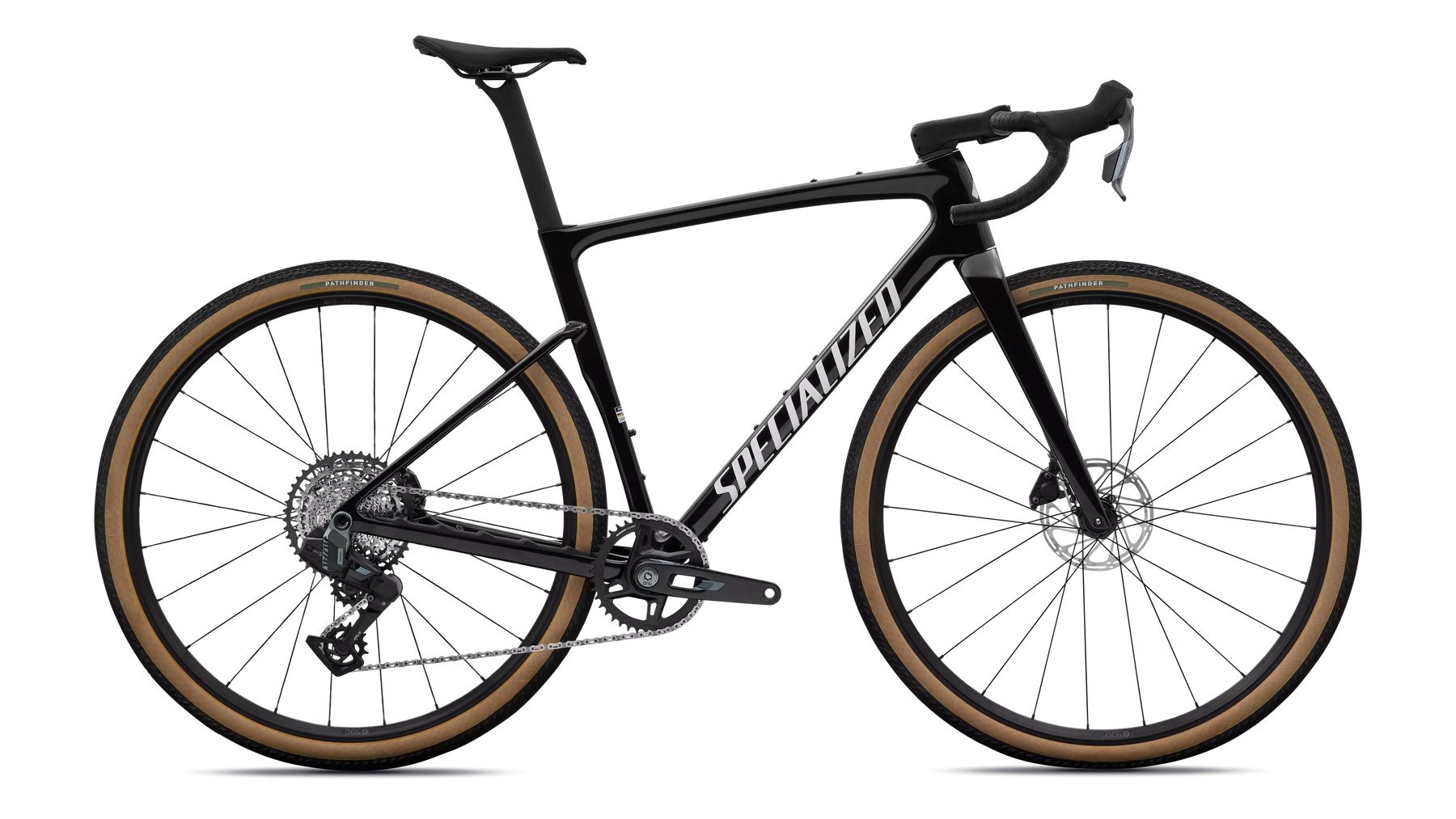

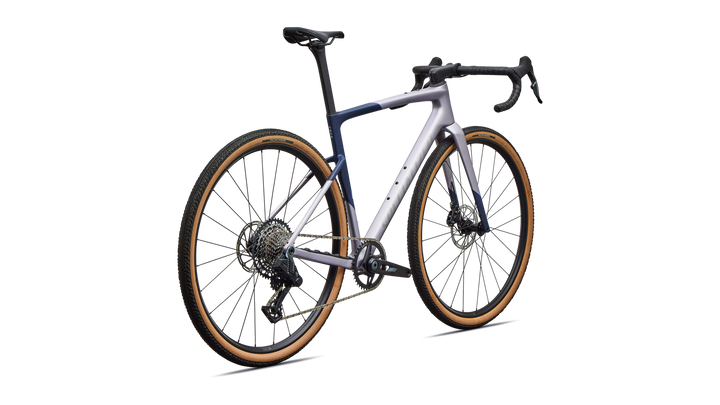

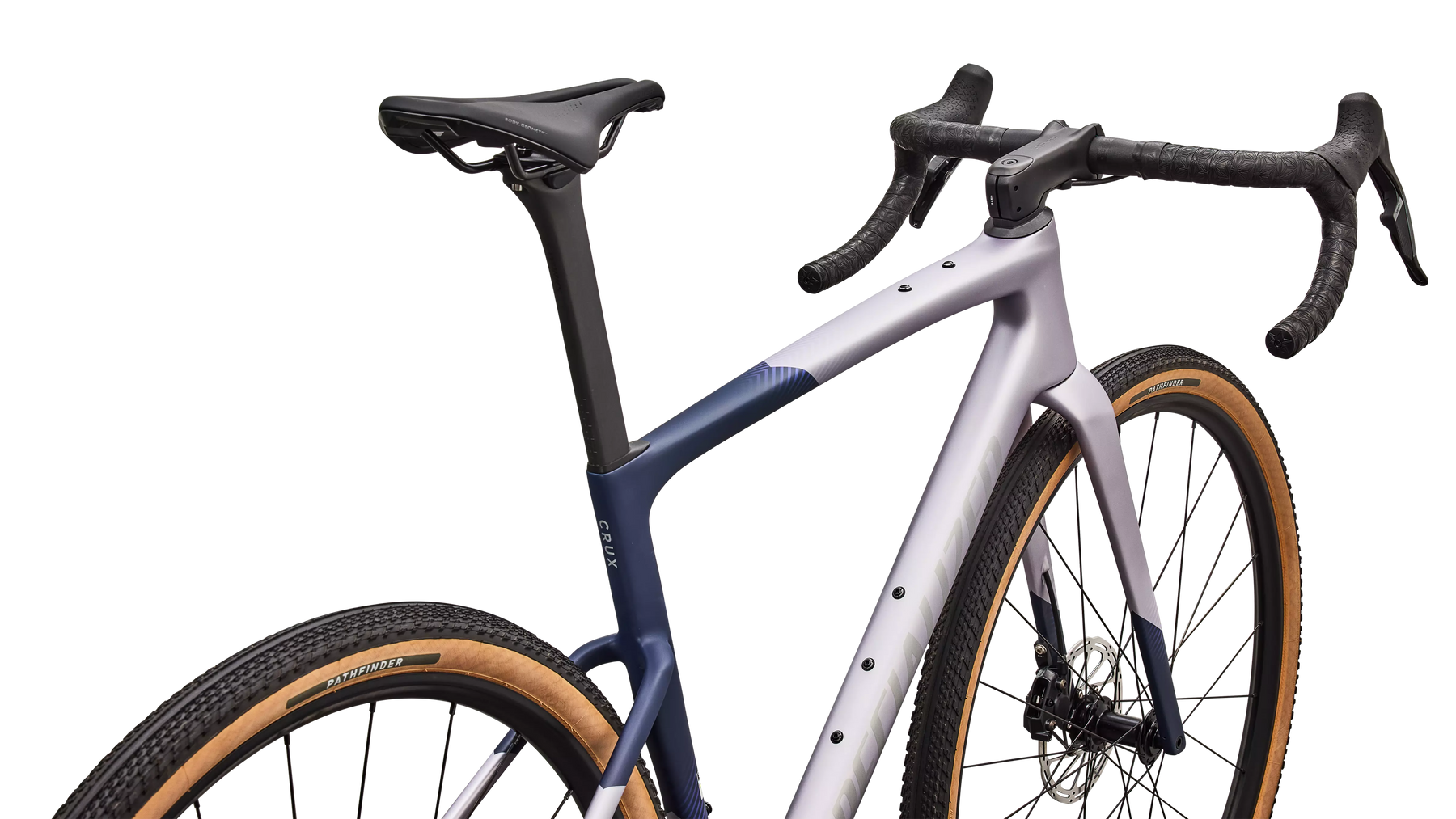

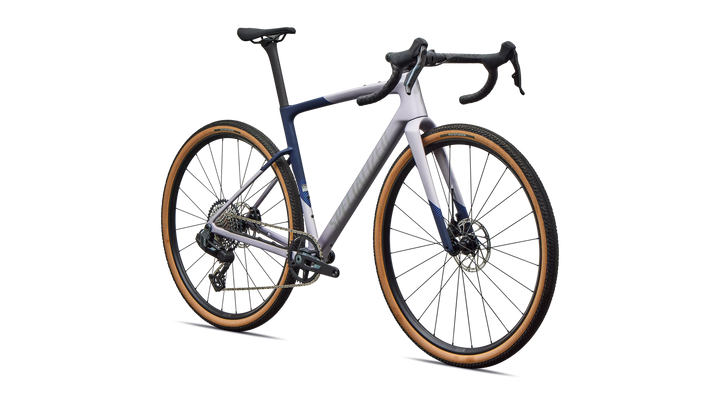

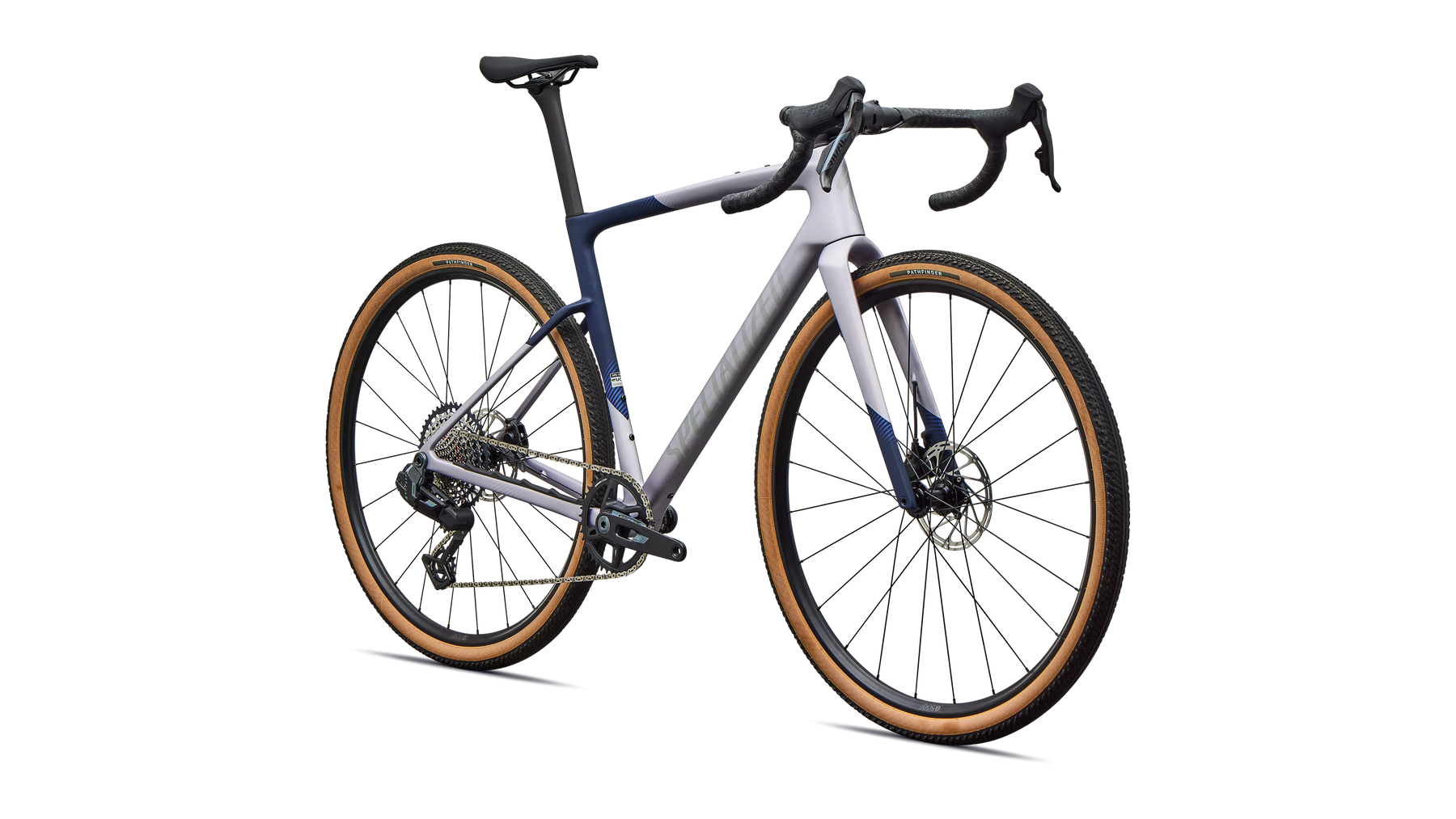

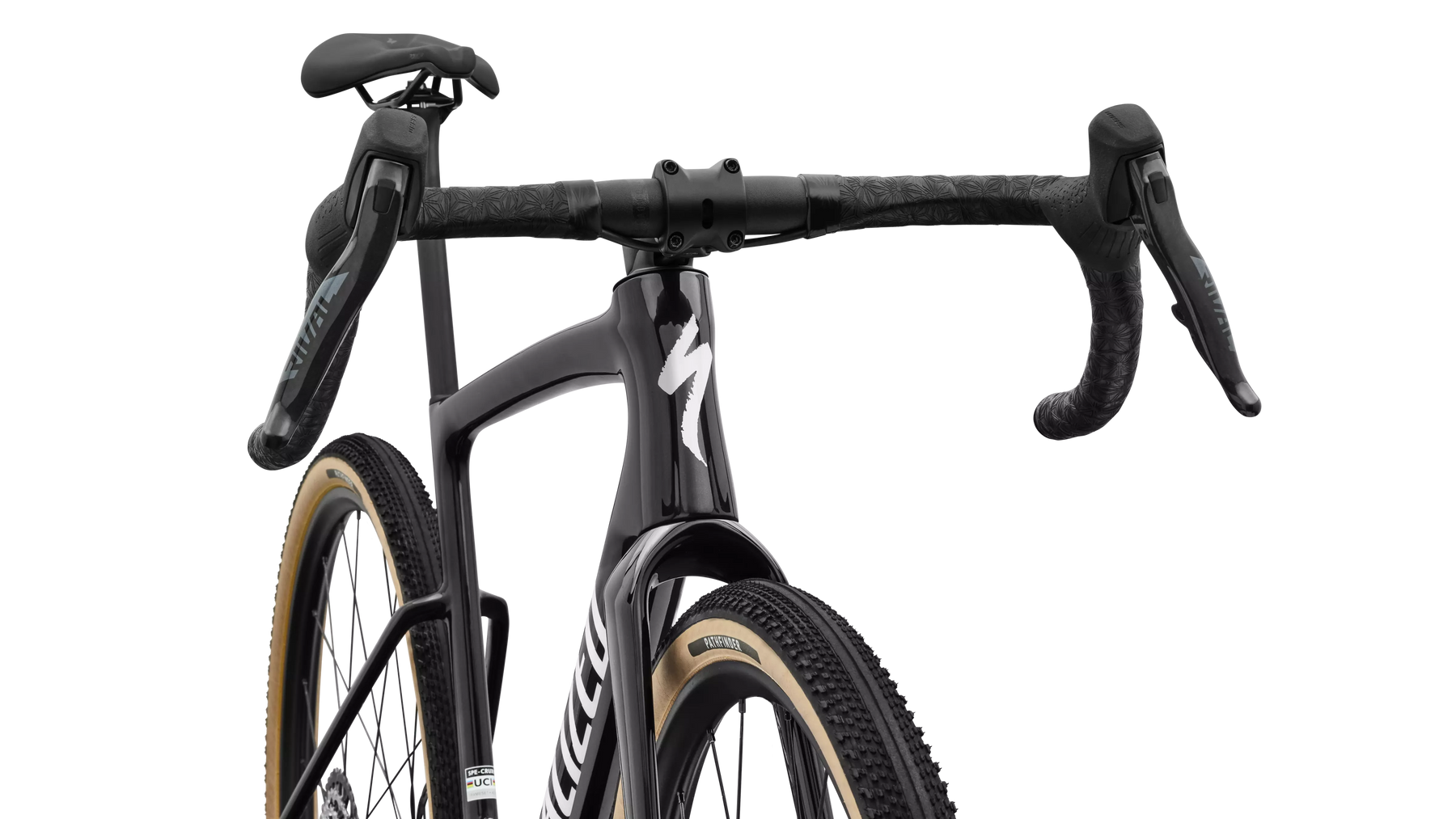

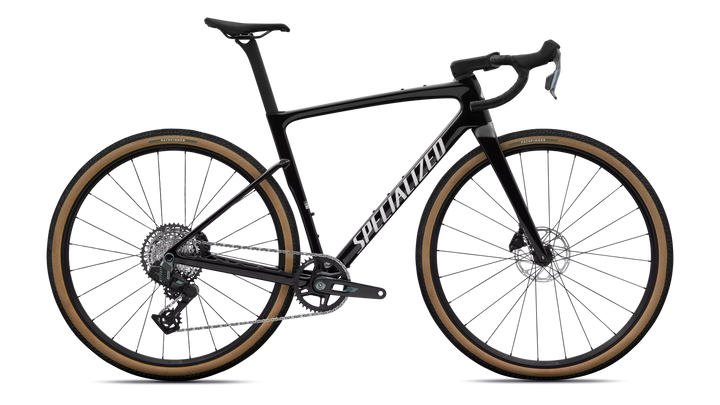

Crux 5 Comp SRAM Rival XPLR
The Crux 5 Comp SRAM Rival XPLR is a fast, lightweight carbon gravel bike built for riders who want serious gravel race performance without going all the way to the top-tier build kits.
Built around a FACT 10r carbon frame with a claimed frame weight of 897g, the Crux 5 Comp delivers a responsive and efficient ride feel across gravel roads, rough backroads and mixed-surface racing. With SRAM Rival AXS XPLR 13-speed wireless shifting, 45mm Pathfinder tyres and tubeless-ready DT Swiss G500 wheels, it is ready for speed, control and adventure.
At a Glance
- Use: Gravel racing, fast mixed-surface riding and adventure riding
- Frame: Crux 5 FACT 10r Carbon
- Fork: S-Works FACT Carbon
- Drivetrain: SRAM Rival AXS XPLR E1, 13-speed
- Wheels: DT Swiss G500 tubeless-ready wheels
- Tyres: Pathfinder 700x45, Tubeless Ready
- Stem: Roval Rapide alloy stem
- Handlebar: Specialized Adventure Gear alloy bar
- Weight: Approx. 8.89kg, size 56
Why We Like It
- FACT 10r carbon frame gives the Crux 5 Comp a light, responsive and race-focused ride feel
- SRAM Rival AXS XPLR wireless shifting brings clean, reliable electronic performance
- 13-speed 10-46T cassette gives a wide gear range for climbs, fast flats and rolling gravel
- 45mm Pathfinder tyres offer a great balance of rolling speed, grip and comfort
- DT Swiss G500 tubeless-ready wheels are durable and well suited to rough gravel riding
- Flared Adventure Gear handlebar adds control and confidence on loose or uneven surfaces
Technical Specifications
Frameset
- Frame: Crux 5 FACT 10r Carbon, Rider First Engineered™, threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout
- Fork: S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Brakes
- Front Brake: SRAM Rival E1 hydraulic disc
- Rear Brake: SRAM Rival E1 hydraulic disc
Drivetrain
- Shift Levers: SRAM Rival AXS E1
- Rear Derailleur: SRAM Rival AXS E1 XPLR, 13-speed
- Crankset: SRAM Rival E1 XPLR, DUB Wide, 40T
- Cassette: SRAM Rival E1 XPLR, 13-speed, 10-46T
- Chain: SRAM Rival E1
- Bottom Bracket: SRAM DUB BSA 68 Wide
Wheels & Tyres
- Front Wheel: DT Swiss G500 rim, 26mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru-axle hub, Centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
- Rear Wheel: DT Swiss G500 rim, 26mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru-axle hub, Centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
- Front Tyre: Pathfinder 700x45, Tubeless Ready
- Rear Tyre: Pathfinder 700x45, Tubeless Ready
- Inner Tubes: 700x32-50mm, 40mm Presta valve

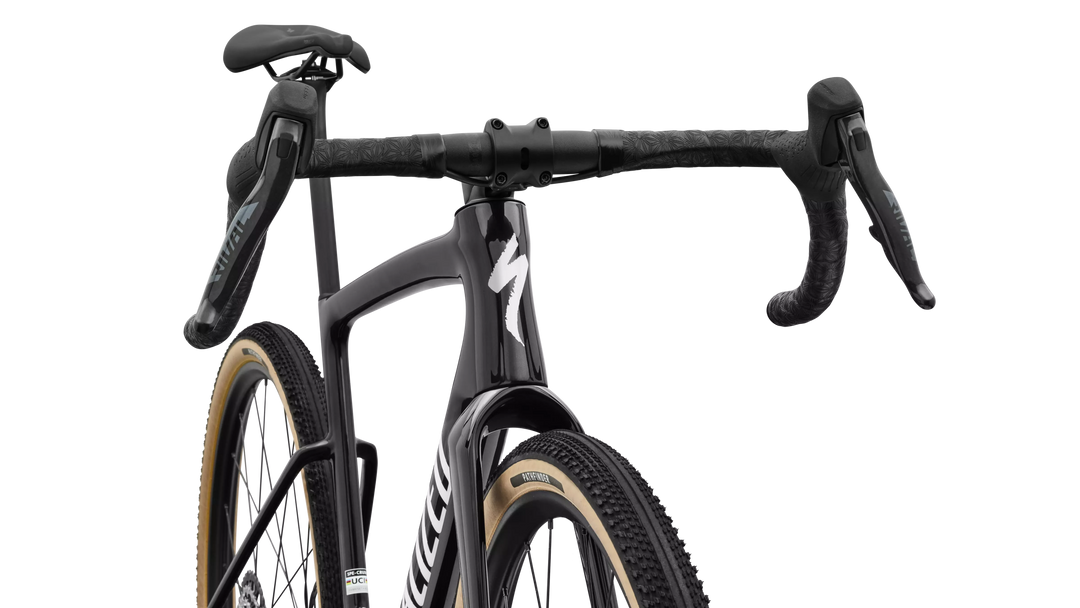

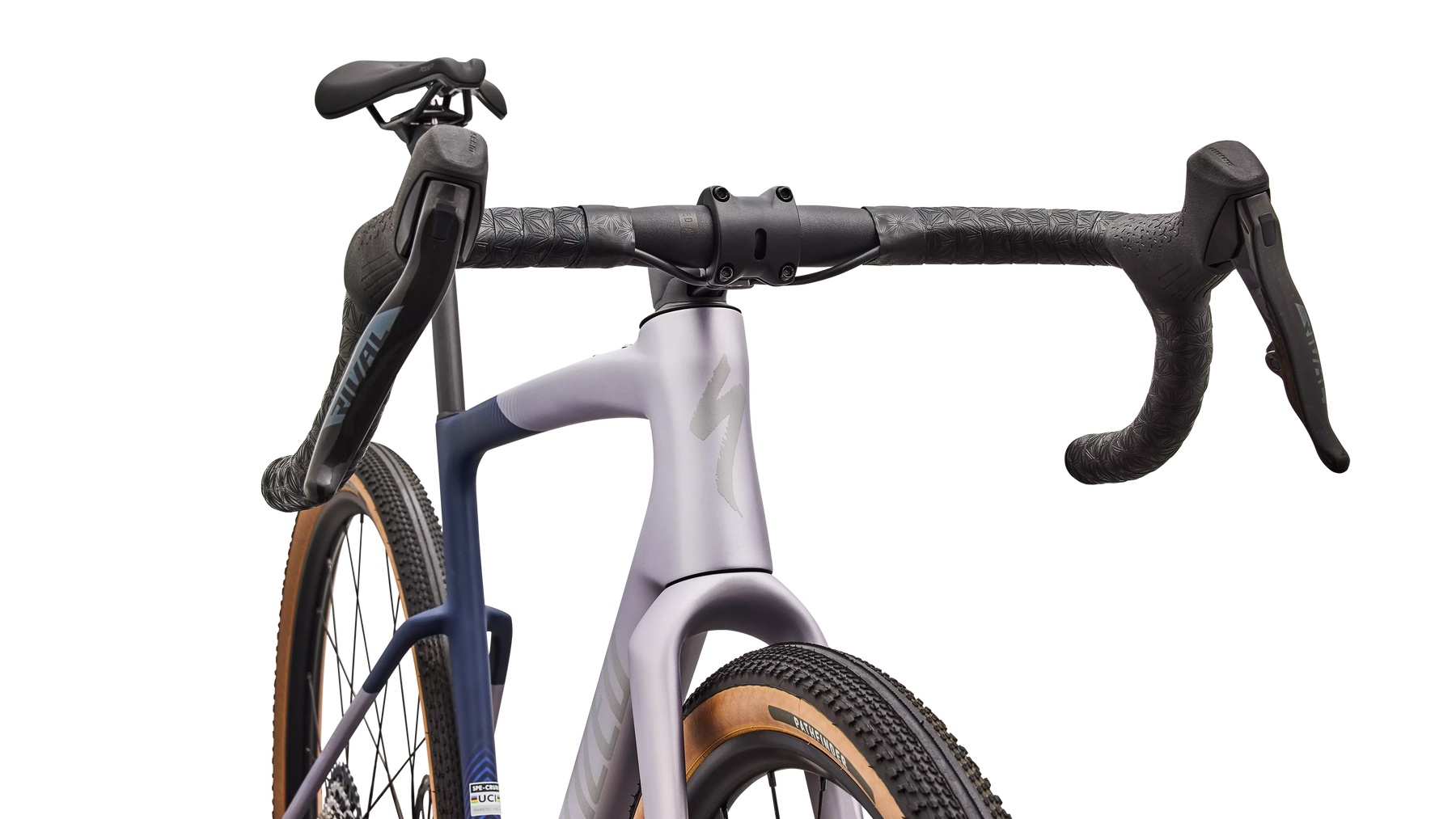

Cockpit
- Handlebars: Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare
- Stem: Roval Rapide alloy, 4-bolt, -6 degrees
- Seatpost: S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
- Saddle: Body Geometry Power Sport, steel rails
- Tape: Supacaz Super Sticky Kush
- Seat Binder: Integrated wedge
Who This Bike Is For
The Crux 5 Comp SRAM Rival XPLR is ideal for riders looking for a lightweight carbon gravel bike that can handle racing, fast weekend rides and long mixed-surface adventures. It suits road riders moving into gravel, experienced adventure riders, and anyone wanting a capable, fast and modern gravel bike with wireless electronic shifting.
