Norco Fluid FS Youth 20 - Dark Metallic Green
Pairs well with
✓ Free Click & Collect
🚚 Bike freight $200 (QLD, NSW, VIC, ACT, TAS & SA)

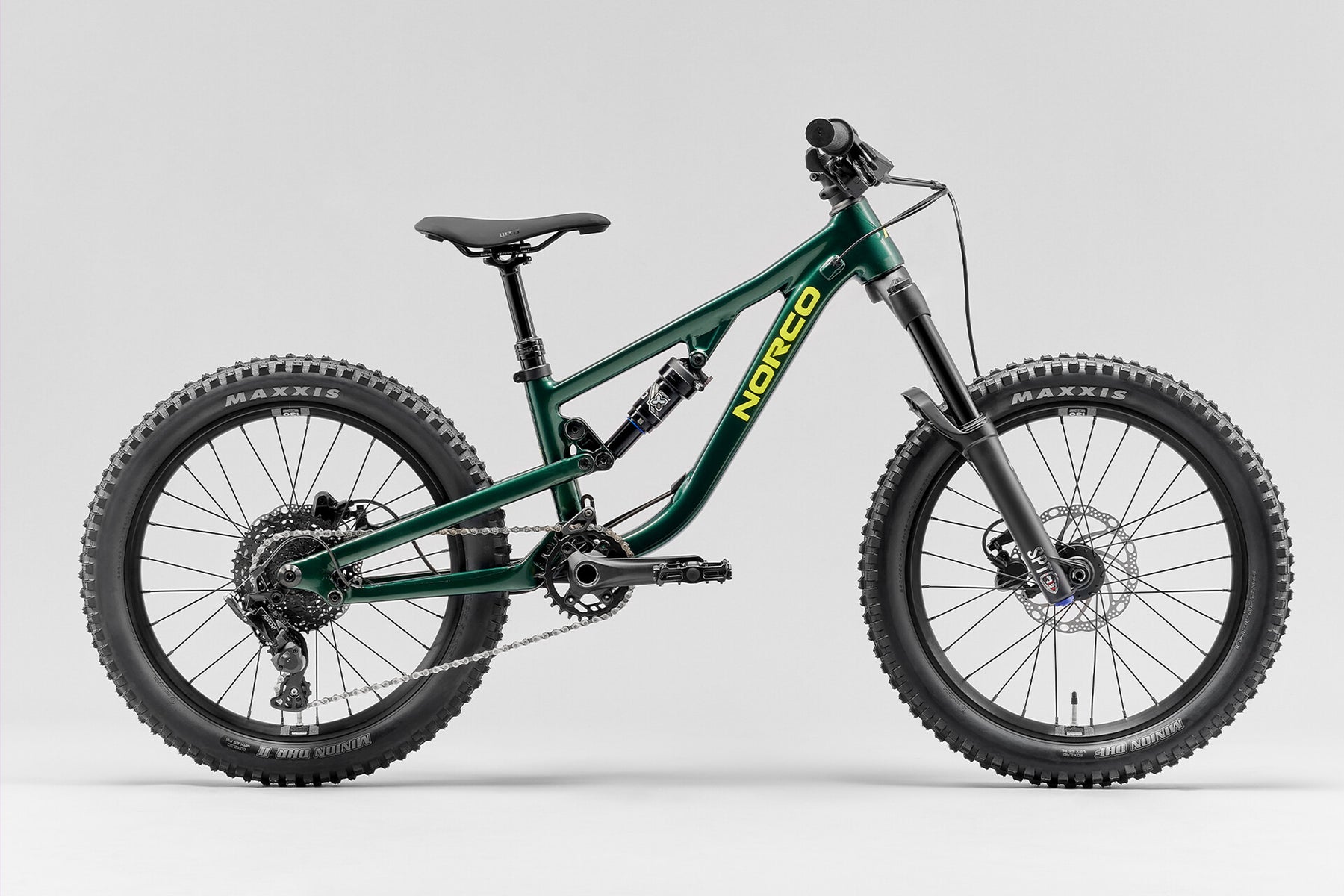

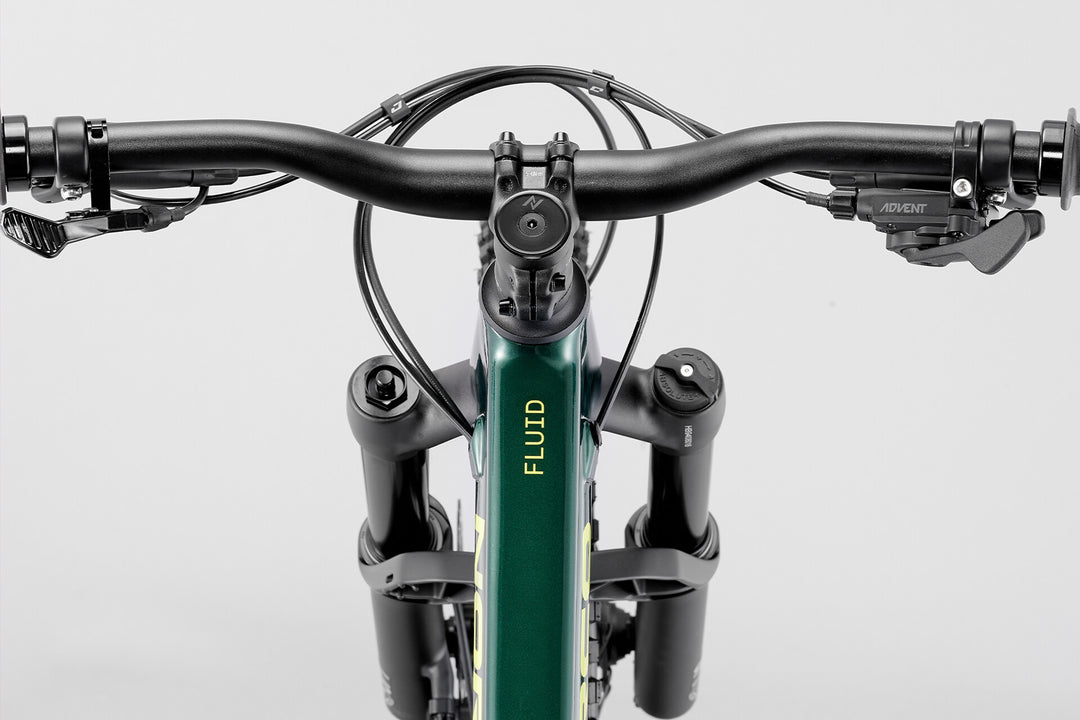

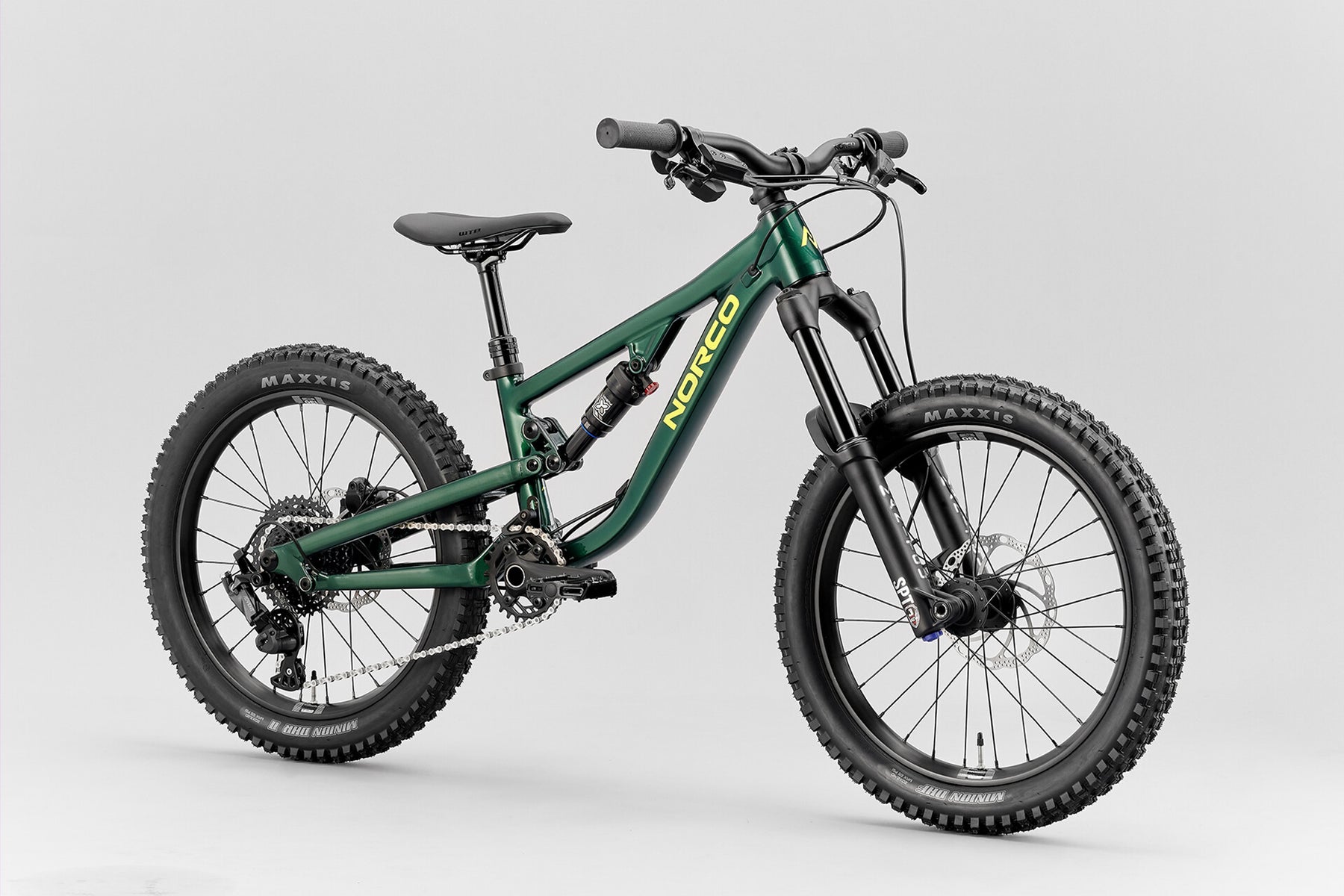

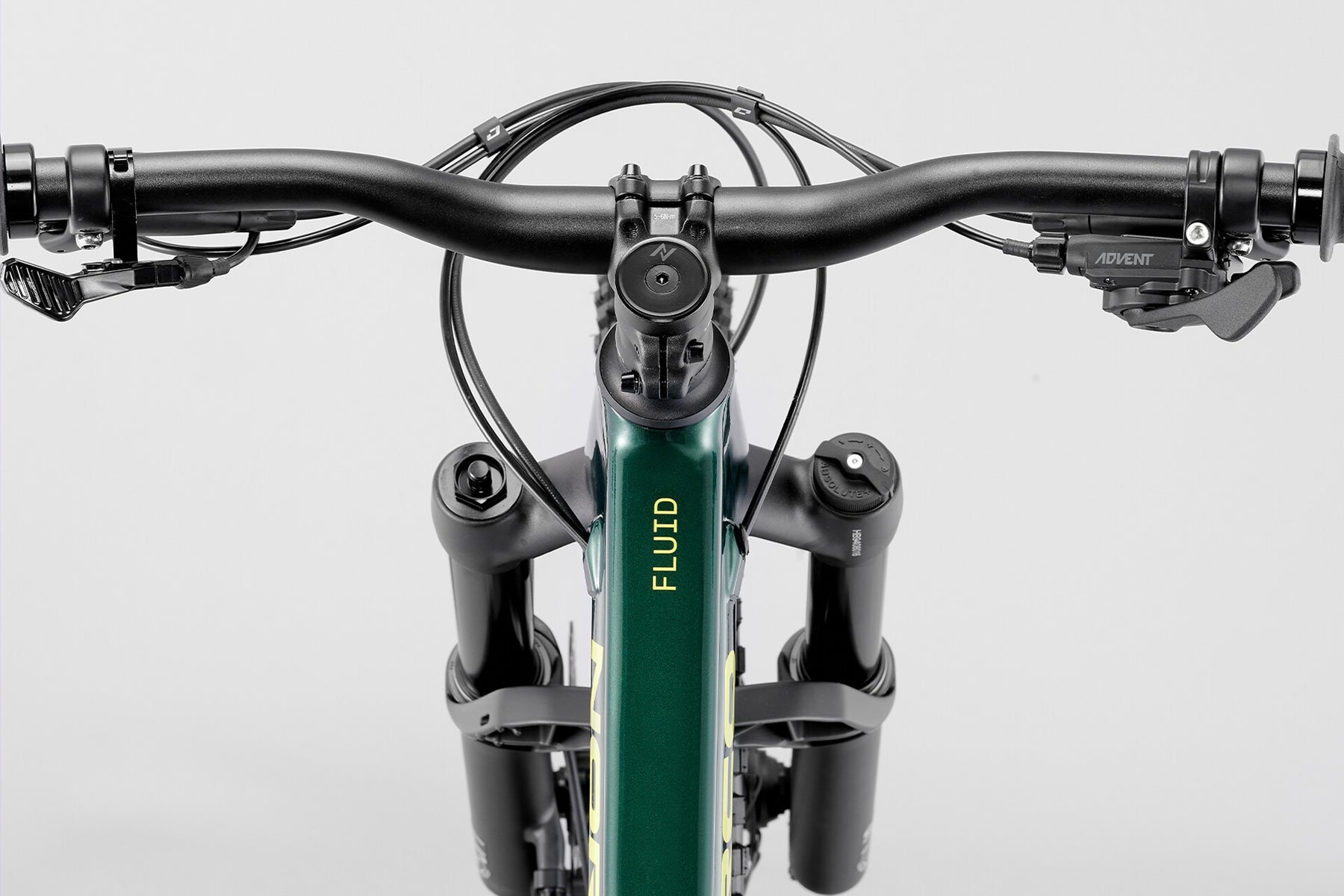

Norco Fluid FS Youth 20 - Dark Metallic Green
The Norco Fluid FS Youth 20 is built for young riders who want to tackle real trails, not just the footpath. With a 6061 alloy full-suspension frame, a 120mm Manitou JUNIT Sport fork, an X-Fusion O2 Pro R rear shock, a 100mm TranzX dropper post and microSHIFT Advent 9-speed gearing, this is a genuine trail bike scaled down for 7–10-year-olds.
At Mackay Cycles, we see the Fluid FS Youth 20 as the premium choice for young riders who have outgrown a hardtail and want proper suspension, a dropper and grippy Maxxis tyres on the trails around Mackay and beyond.
Key Features
- 6061 alloy Fluid FS Youth frame with youth-specific geometry, low standover and a UDH derailleur hanger

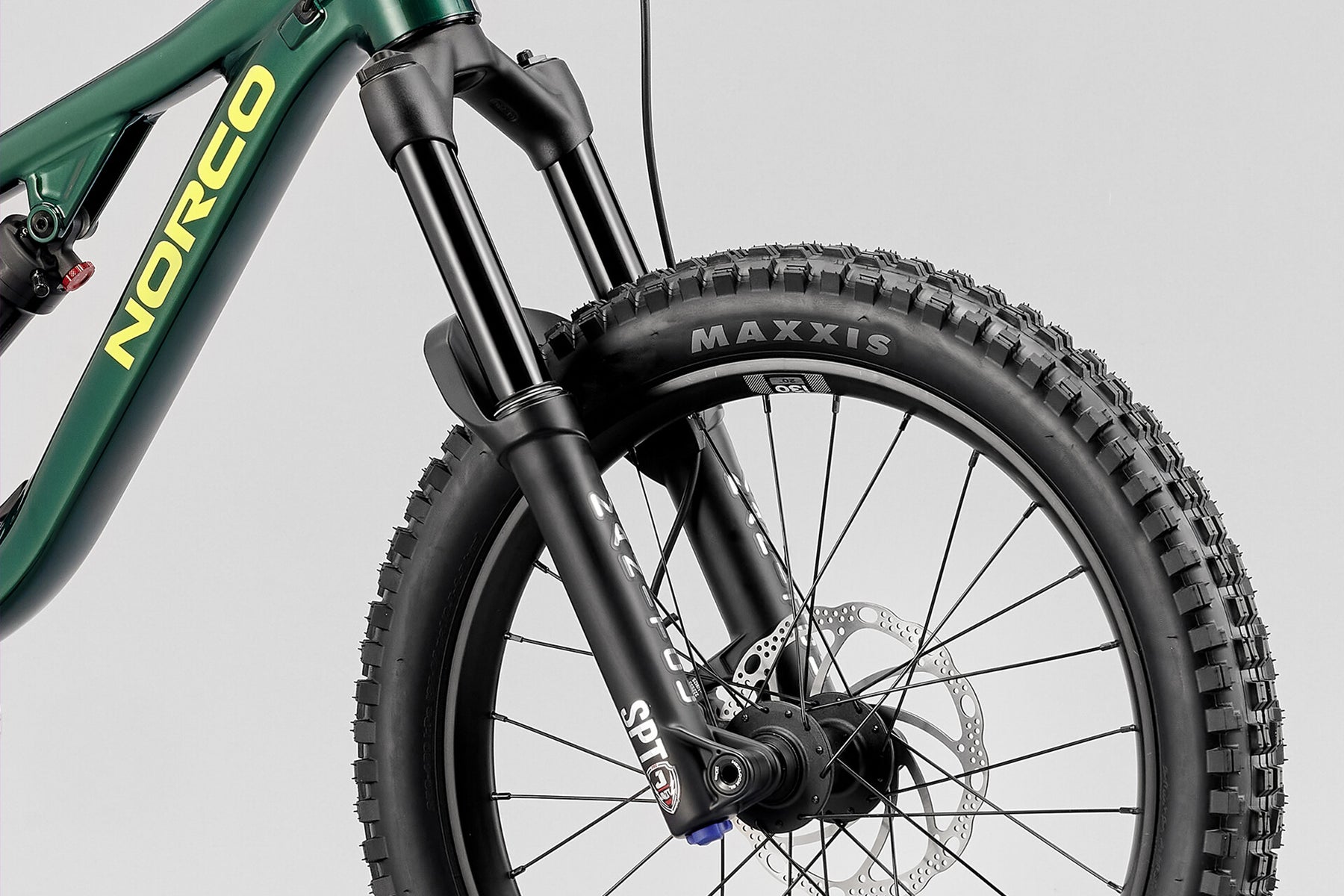

- Manitou JUNIT Sport 20" fork with 120mm travel and alloy stanchions
- X-Fusion O2 Pro R rear shock with Norco's soft A-Tune for lighter riders
- TranzX 100mm dropper seatpost with Kids Tune

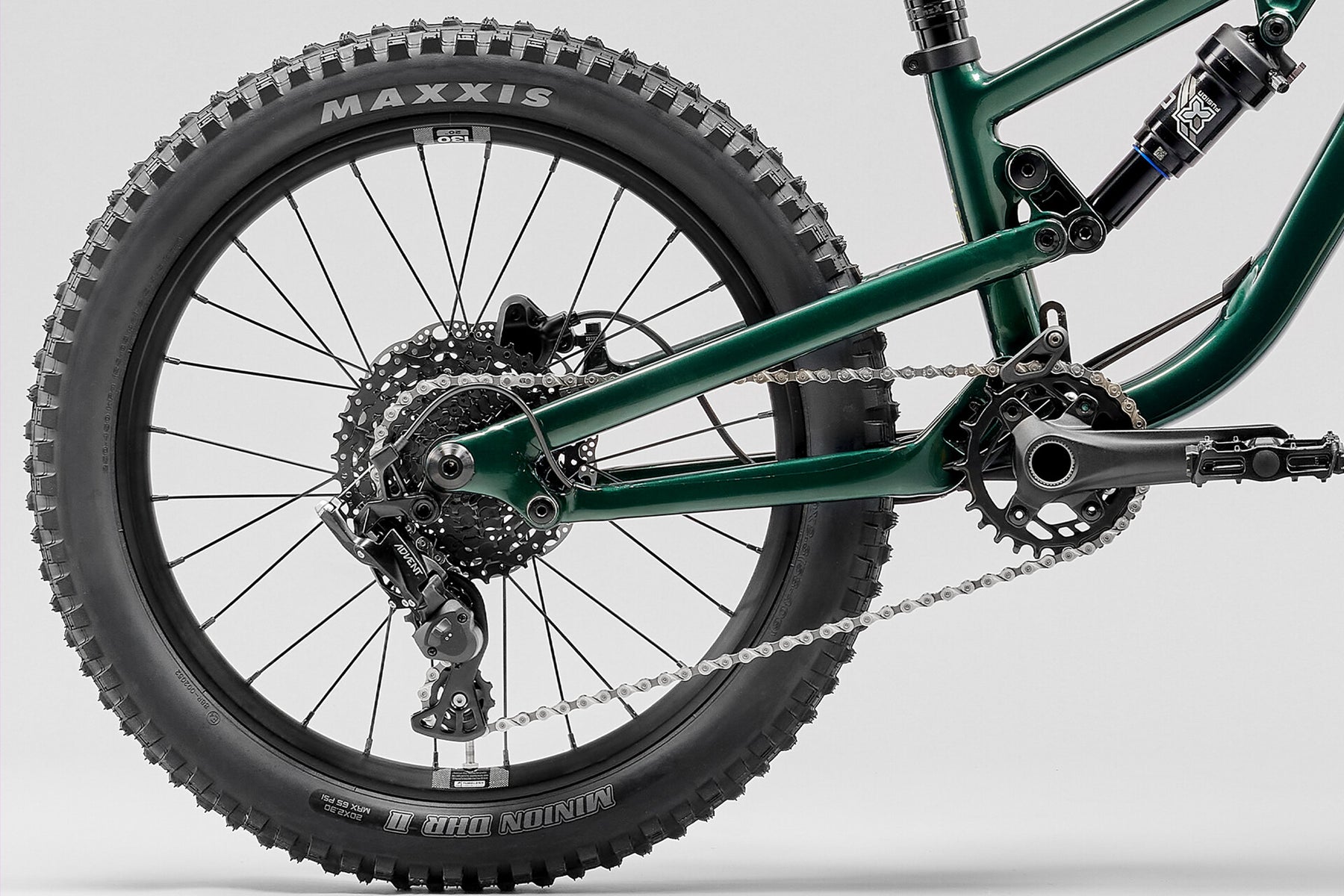

- microSHIFT Advent 9-speed drivetrain with a clutch rear derailleur and 11-38T cassette
- Tektro HD-J285 two-piston hydraulic disc brakes with short-reach levers and 160mm rotors
- WTB TCS 2.0 rims (27mm internal) on Formula Boost thru-axle hubs (15x110 / 12x148)
- Maxxis Minion DHF 2.4" front and Minion DHR II 2.3" rear EXO folding tyres
Sizing
Norco recommends the Fluid FS Youth 20 for riders around 116–130 cm tall (from about 112 cm while growing into it), aged roughly 7–10 and under 40.8 kg (90 lb). See the Norco bike sizing tab for every wheel size, or bring your rider in and we'll check the fit.
Geometry
| Reach | 320 mm |
| Stack | 443 mm |
| Head Tube Angle | 64.0° |
| Seat Tube Length | 255 mm |
| Effective Seat Tube Angle | 75.0° |
| Rear Centre Length | 355 mm |
| Bottom Bracket Rise/Drop | 10 mm |
| Bottom Bracket Height | 270 mm |
| Horizontal Top Tube | 439 mm |
| Wheelbase | 940 mm |
| Standover | 500 mm |
| Head Tube Length | 90 mm |
| Trail | 83 mm |
| Recommended Seatpost Drop | 80 mm |
| Maximum Post Insertion | 130 mm |
| Stem Length | 35 mm |
| Tire Size | 2.35" - 2.6" |
Please note: specifications are subject to change without notice.
| Frame | 6061 Alloy, 120mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™ |
|---|---|
| Fork | Manitou JUNIT Sport 20", 120mm Travel, 40mm Offset, alloy stanchion |
| Rear Shock | X-Fusion 02 Pro R, 170x30mm Standard, A-Tune Soft |
| Headset | Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40) |
| Seat Binder | Norco Alloy Nutted Clamp, 34.9mm ID |
| Shift Levers | microSHIFT Advent, 9spd |
| Rear Derailleur | microSHIFT Advent, 9spd, Short Cage Clutch |
| Cassette | microSHIFT Advent, 11-38T, 9spd |
| Chain | KMC X9, 9spd |
| Crankset | Prowheel Junior Alloy, 28T, 127mm |
| Bottom Bracket | Prowheel Cartridge BB |
| Front Brake | Tektro HD-J285, 2-P, Resin Pads, 2 finger lever blade |
| Rear Brake | Tektro HD-J285, 2-P, Resin Pads, 2 finger lever blade |
| Brake Levers | Tektro HD-J285 |
| Rotors | Tektro TR160-22, 160mm, 6-bolt |
| Front Hub | Formula DC-511, 15x110mm Boost, 28h, 6-bolt |
| Rear hub | Formula DC-3248,12x148mm Boost, HG, 28h, 6-bolt |
| Rims | WTB TCS 2.0, 27mm ID, 28H |
| Front Tire | Maxxis Minion DHF, EXO, 20"x2.4", Folding |
| Rear Tire | Maxxis Minion DHR II, EXO, 20" x 2.3", Folding |
| Handlebars | Norco 6061 Alloy DB , 660mm, 20mm rise |
| Stem | Norco 6061, 35mm Length, 31.8mm Clamp |
| Grips | Norco Youth Lockon, 115mm Length |
| Saddle | WTB Solano Med, 142x240 mm, Steel Rails |
| Seat Post | TranzX YSP18BKL, 31.6mm, 100mm, Kids Tune |
Norco youth bike sizing
Norco sizes its youth bikes by wheel size and rider height. The recommended range is the best fit; in the growing-in range the bike will feel slightly large but manageable.
| Wheel size | Recommended rider height | Growing in |
|---|---|---|
| 10" | 80–86 cm | from 77 cm |
| 12" | 86–97 cm | from 84 cm |
| 14" | 95–105 cm | from 93 cm |
| 16" | 104–117 cm | from 102 cm |
| 20" | 116–130 cm | from 112 cm |
| 24" | 128–142 cm | from 124 cm |
| 26" | 133–147 cm | from 131 cm |
| 27.5" Youth/XS | 140–156 cm | from 137 cm |
Heights are Norco's own recommendations. Not sure which size? Bring your rider in to Mackay Cycles and we'll check the fit.
