Norco Rampage Youth 20 - Silver
Pairs well with
✓ Free Click & Collect
🚚 Bike freight $200 (QLD, NSW, VIC, ACT, TAS & SA)

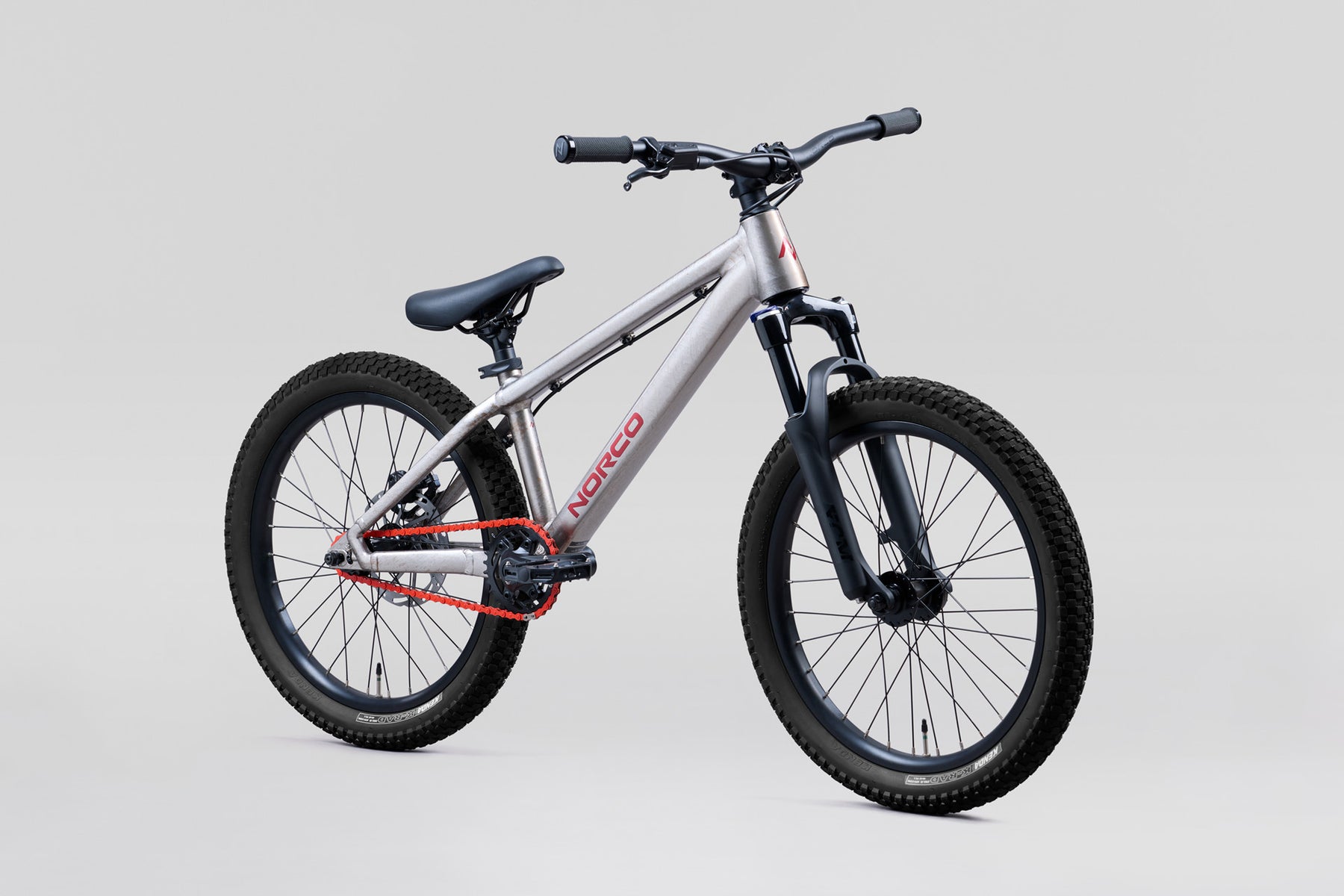

Norco Rampage Youth 20 - Silver
The Norco Rampage Youth 20 is built for young riders who want to get airborne at the pump track, the skate park and the dirt jumps. With a smooth-welded aluminium dirt-jump frame, an 80mm SR Suntour XCR32 Jr Air fork, a simple single-speed drivetrain, Tektro disc brakes with 160mm rotors and Kenda K-Rad 2.35" tyres, this is a purpose-built junior dirt jumper designed with a BMX mindset.
At Mackay Cycles, we see the Rampage Youth 20 as the go-to choice for young riders wanting a tough, simple bike for jumps, pump tracks and skills sessions around Mackay and beyond.
Key Features
- Aluminium 20" dirt-jump frame with smooth welds and a tapered head tube
- SR Suntour XCR32 Jr Air fork with 80mm travel and a 9x100mm axle
- Single-speed drivetrain with a Prowheel Junior alloy 30T crankset (127mm) and KMC Z1 chain
- Tektro disc brakes front and rear with 160mm rotors
- Norco 640mm alloy riser bar with 30mm rise and Norco JR lock-on grips
- Norco DJ saddle on a 200mm alloy seatpost with quick-release clamp
- XD-155 double-wall 20" rims on KT sealed-bearing hubs
- Kenda K-Rad 20 x 2.35" tyres and FM composite junior flat pedals
Sizing
Norco recommends the Rampage Youth 20 for riders around 116–130 cm tall (from about 112 cm while growing into it). See the Norco bike sizing tab for every wheel size, or bring your rider in and we'll check the fit.
Geometry
| Travel (mm front) | 80 mm |
| Reach | 345 mm |
| Stack | 444 mm |
| Head Tube Angle | 68.5° |
| Fork Offset | 40 mm |
| Seat Tube Length | 260 mm |
| Effective Seat Tube Angle | 75° |
| Rear Centre Length | 295 mm |
| Bottom Bracket Drop | 0 mm |
| Bottom Bracket Height | 261.5 mm |
| Horizontal Top Tube | 464 mm |
| Wheelbase | 858 mm |
| Standover | 492 mm |
| Head Tube Length | 100 mm |
| Trail | 60 mm |
| Maximum Post Insertion | 212 mm |
| Crank Length | 127 mm |
| Tire Size | 2.35" – 2.5" |
Please note: specifications are subject to change without notice.
| Frame | Aluminum DJ 20", Smooth Welding |
|---|---|
| Fork | SR Suntour XCR32 Jr Air, 80mm, 9x100mm |
| Headset | Tapered 1-1/8"- 1.5",(ZS44/28.6 | ZS56/40) |
| Seat Binder | Norco Alloy QR, 31.8mm ID |
| Cassette | Single speed, 13T |
| Chain | KMC Z1, 1/2 x 3/32" |
| Crankset | Prowheel Junior Alloy, 30T, 127mm |
| Bottom Bracket | Square Taper, 73mm, 122.5mm axle |
| Pedals | FM Composite Jr Flat Pedal |
| Front Brake | Tektro MD-M280, Mechanical Disc, Resin Pads |
| Rear Brake | Tekro HD-M3121, Resin Pads |
| Brake Levers | Tektro Alloy |
| Rotors | Tektro TR160-52, 160mm, 1.8mm Thickness , 6-bolt |
| Front Hub | KT sealed bearing, 3/8" nutted axle, 32H, 6-Bolt |
| Rear hub | KT sealed bearing, 3/8" nutted axle, 32H, 14T SS sprocket, 6-Bolt |
| Rims | XD-155 DW, 32h, F/R 20", 26.6mm ID |
| Front Tire | Kenda K-Rad, 20x2.35", Wire Bead |
| Rear Tire | Kenda K-Rad, 20x2.35", Wire Bead |
| Handlebars | Norco Aluminum, 640mm, 30mm Rise |
| Stem | Norco, 45mm Length, 31.8 Clamp |
| Grips | Norco JR Single lock on, 92mm length |
| Saddle | Norco DJ, 243x130mm |
| Seat Post | Alloy 27.2mm ID, 200mm Length |
Norco youth bike sizing
Norco sizes its youth bikes by wheel size and rider height. The recommended range is the best fit; in the growing-in range the bike will feel slightly large but manageable.
| Wheel size | Recommended rider height | Growing in |
|---|---|---|
| 10" | 80–86 cm | from 77 cm |
| 12" | 86–97 cm | from 84 cm |
| 14" | 95–105 cm | from 93 cm |
| 16" | 104–117 cm | from 102 cm |
| 20" | 116–130 cm | from 112 cm |
| 24" | 128–142 cm | from 124 cm |
| 26" | 133–147 cm | from 131 cm |
| 27.5" Youth/XS | 140–156 cm | from 137 cm |
Heights are Norco's own recommendations. Not sure which size? Bring your rider in to Mackay Cycles and we'll check the fit.
