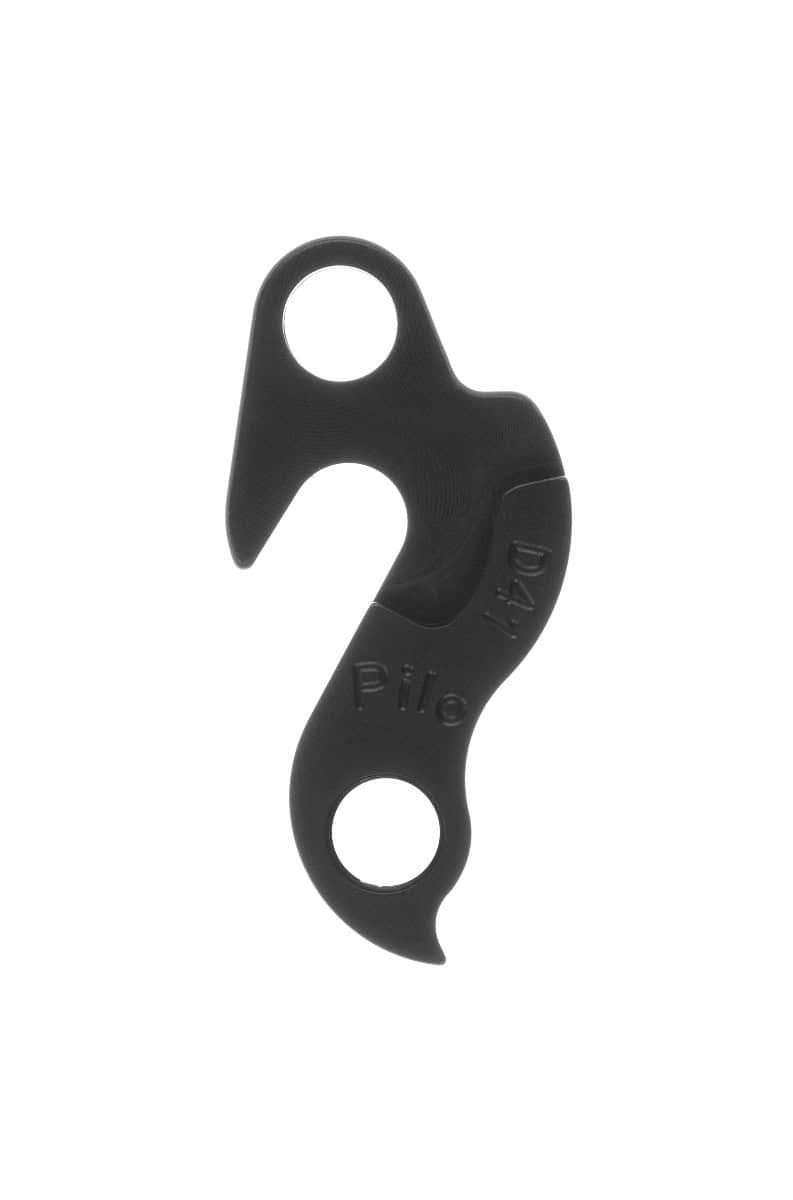

The Pilo D41 is a CNC-machined replacement rear derailleur hanger for Azonic, Focus, Fuji, GT, Ghost, Jamis, Kona, Ridley and other bikes, made from 6061-T651 aluminium and anodised so your derailleur sits straight and shifts cleanly. A bent or snapped hanger is the most common reason a bike won't shift, and a spare saves a ride. Many frames use near-identical hangers, so compare the photo, the bolt holes and the axle shape with your old hanger before ordering.
Compatibility
- Boardman: SLR 8.9a 2018; SLR 8.8 2018; SLR 8.6 2018
- Scott: 2014 speedster
- Dedacciai: Progetto
- Scatto: Up to 2018 JC28, J-race
- Garneau: 2008 2009 Motion; 2005 LG 2
- Fezzari: Catania Rim; 2014 2015 Lone Peak; 2015 Wasatch Peak
- Avanti: FRI829, Blade
- Vitus: 2013 Blitz Gravir, Premier
- Lapierre: 2015 Raid FX
- CKT: 2015 158
- Silverback: 2015 Siablo comp, Salice race
- Romet: 2015 Huragan 3.0, Mistral City
- Isaac: 2014 graviton
- Megamo: 2015 R10 Sport
- Paco: 2015 Racing 20
- Wilier: 2014 asolo
- Salcano: 2014 xrs 030
- Hot Chili: 2014 slite
- Asama: 2015 Eu1506 Tp 1406, Eu1507 Tp 1407
- Stevens: 2014 strada 600, chisallo, stelvin, inpala pro, impala taigra
- Musing: 2014 onroad lite, comp
- Hercules: 2014 robert/-a27 pro, robert/-a27 dd, robert/-a10, robert/-a10 cr street
- Berg: 2015 Vertex 200, Trail 300, Trail 200
- Viper: 2015 Stelvio 105 Compact
- Winora: 2015 Orinoco, CB1
- Staiger: 2015 Oregon, Ohio, Virginia, Louisiana, Utah, Alaska, Idaho, Daytona, Montana Street, Texas
- Scott: 2015 Contessa Speedster 35, Contessa Speedster 15, Speedster 50 FB, Speedster 30, Speedster 20, Speedster 10
- Fuji: 2015 Talon Tri; 2008 Absolute, Ace, Finest, Newest Series, Roubaix, Sunfire; 2007 Cross pro, Roubaix; 2003 2004 2005 Sagres, Roubaix, Absolute
- Haibike: 2014 xduro life 26, cross sl, trekking s, attack fs 26
- Azonic: 2003 Saber, Propulsion
- GT: 2007 GTR Carbon; 2006 R Road bikes
- Kona: Type HR; 1999 2000 Haole, Kapu
- Masi: 2002 2003 2004 Gran Corsa, Gran Criterium; 2002 3VS
- Orange: 2011 2012 Elite
- KHS: (#73-079-145); 1998 1999 Aero Carbon; 2001 Flite 700 , 1000
- Diamondback: 2015 E-Lux 1.0, E-Lux; 1996 1997 1998 1999 europe road bikes; podium 2:1
- Ironhorse: 2004 Maverick comp (there are 2 types of hangers for this model, so you have to compare the one you have to our picture or contact us for help), Sport; 2002 Tempo; 2001 Adirondack; 2000 Fairlane
- Transition: 2007 DirtBag, BottleRocket, Vagrant, Double, Preston FR, Syren
- Bianchi: 2015 Jab 27.1 FST, Camaleonte 2, Kuma 27.2, E-Jab 27.1 FST, Jab 29.1, Ethanol 27.1 SX; 2006 928, Luna; 2003 2004 XL carbon; 2000 EV2; some years of Giro, Short P, super G
- Marin: aka MARIN #6; 2015 Argenta Elite; 2016 Ravenna
- Polygon: 2010 Helios 100, 200, 300; 2009 2010 2011 Helios F100, F300, F500; 2009 2010 Collosus XCSERIES; 2009 2010 Collosus SXSERIES; 2009 2010 2011 Collosus AMSERIES, AXSERIES; 2010 2011 2012 Cozmic CX3, CX4, CX5
- Kuota: Kharma and others…
- Focus: 2012 Cypress; 2008 Cross disc / pro, Culebro, Raven, Super Bud; 2007 - Fire Edge, Cross expert , Izalco, Mares cross, Raven / pro ltd
- BMC: 2011 Carborazor CRZ; 2010 Carborazor; 2009 Carborazor; 2008 Streetfire SS 01, Carborazor, Cargo; 2007 Team Elite TE 01; Team Elite TE 02; Streetfire SS 01; Carborazor; Cargo; 2006 Blast 02; Blast 03; Team Elite 01; Team Elite 02; Streetfire SSX; Streetfire SS 01; Streetfire SS 02; Streetfire SSW; Carborazor; Cargo; 2005 Blast; Carborazor; Team Elite 01; Team Elite 02; SSW 26; SSX Phonak; 2004 Carborazor; Fourtuned 01; Fourtuned 02; SSW; SSX; Streetfire SS 01; Streetfire SS 02; Streetfire SS 03; Velvet 01; Velvet 02; Velvet 03; 2003 Fourtuned Elite; Fourtuned Pro; Fourtuned XC; Golddigger; Spartacus SL; Streetfire SS 01; Streetfire SS 02; Streetfire SS 03; Streetfire SSX; Venus
- Ridley: 2015 X-Bow, Crossbow, Geryon, Triton Dame, Triton Training and others…
- Rocky Mountain: 2015: Vertex 950, Trailhead 29, Fusion 27.5; 2010: Metropolis, Metro (5, 30); 2009: Whistler 30, Metro 10, 30, Oxygen 10RL
- Nox: Airbase
- Conor WRC: 2019 Spate, Road Ride, C.Cross, Spiritx
- Orbea: 2012 OIZ carbon
- Mondraker: 2015 Finalist Pro SL, Panzer; 2010 Factor,Pensacola pro, Foxy, MR; 2010 2011 Podium, Level, Factor carbon,; 2009 2010 Dune; 2010 2011 Ventura – X - GO; 2008 2010 2011 Finalist
- Leader: 715 R aluminum road frame
- Bottecchia: 2015 Lagorai 27.5" XT 20S
- Devron: 2015 Urbio R5.8
- Kross: 2015 Vento 4.0, Vento 1.0; Bisette, Satine, Silk, Tresse, Vento 1.0, 2.0 From 2014; Bisette , Satine, Silk, Tresse, Vento 1.0-4.0, Pulso 1.0, 2.0 From 2015; Vento 1.0-4.0, Pulso 1.0, 2.0 From Year 2016/2017; Vento Replica, Pulso 1.0, 2.0 From 2018; Vento Jr 2.0 From The Year 2019/2020/2021; Vento 1.0-4.0 2018; Pulso 1.0, 2.0, Vento 1.0-5.0 2019; Pulso 1.0, 2.0, Vento 1.0-5.0 2020; Vento 1.0-2.0,3.0,5.0 2021; Trans 1.0-2.0, Evado 1.0-2.0, City 1.0-2.0
- Claud Butler: Type "J"
- Falcon: Various frames
- Univega: 2015 Renegade 6.0, Renegade 7.0, Renegade 8.0
- Ksm: Various frames
- Ktm: 2015 Strada
- Optima: Various frames
- Shogun: Various frames
- Kestrel: Various frames
- Look: KG461
- Blue: 2008 road frame
- Poison: Curare
- Venzo: 2010 RX-3, ERICA, RONIX, SPRINTER R3
- Capriolo: 2014 SPEEDSTER / F2
- Jamis: 2014 icon
- Whyte: 2009:; 19-C RACE, 19-C TEAM; 2010:; 19-C, 19-C WORKS XX, 19-C RACE; 2011:; 19-C, 19-C WORKS XX, 19-C S, 19-C TEAM
- Merida: 2015 Hardy 6. 100, Hardy 6.40, Hardy 6. 70; 2014 cyclo cross 4-D, 3-D, hardy 4, 5, 6
- Head: 2015 27,5" Tacoma II
- Sensa: Romagna, Umbria , Trentino
- Merlin: Maven, S2200, PR7.
- Trek: 1.5
- Ghost: Various frames
- Decathlon: Rockrider FR6
- Motobecane: Various frames
- Koga: Flyer 105; Granwinner; Team Edition
- Pells: Aeron 2011 2012 2013 2014 2015 2016 2017.
- White: V26 - B1137; v06 SC Comp/Lite; Alloy Frame 24" RR Road; 2017 RR 240 Lite.; v19 RR Pro 16 STD
- Genesis: 2015 2016 Volant, Delta
Specifications
- Material: 6061-T651 aluminium, CNC machined, anodised
- Pilo code: D41
- Axle type: Quick Release
- Fixing bolt holes: 1
