Name: Tripeak Steel Bearing 3-in-1 Bottom Bracket System - 24/29/30mm
Brand: Tripeak
SKU: EMA-BSA-SCSB2430
Price: 108.9 AUD
Availability: InStock

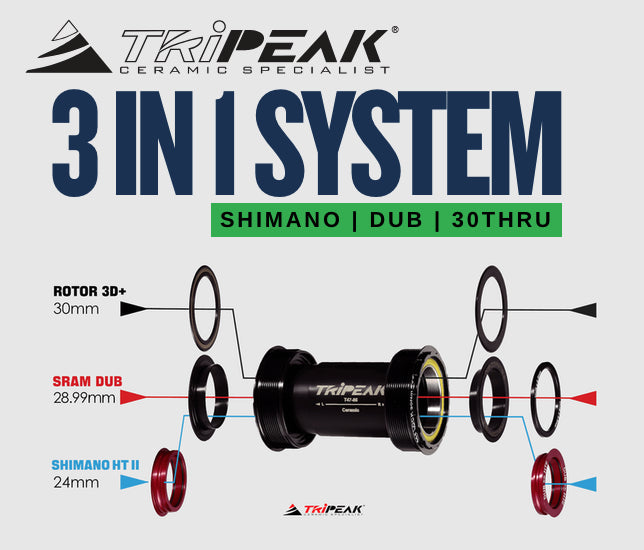

Tripeak 3-in-1 Core System — Shimano HTII 24mm, SRAM DUB 28.99mm, ROTOR 3D+ 30mm

$108.90

Tax included. Shipping calculated at checkout.

Quantity

✓ Free freight P&A $200+

🚚 $20 freight under $200

🏪 Free Click & Collect

TRIPEAK STEEL BEARING 3-IN-1 BOTTOM BRACKET SYSTEM - 24/29/30MM

The Tripeak Steel Bearing 3-in-1 is built for riders who want one bottom bracket that survives crank changes instead of buying a new BB every time the drivetrain changes. With P05 precision steel ball bearings, an interchangeable 3-in-1 core that accepts Shimano HTII 24mm, SRAM DUB 28.99mm and ROTOR 3D+ 30mm spindles, ZeroCreak alignment and Twist-Fit installation on the press-fit shells, this is the workhorse of the Tripeak range.

At Mackay Cycles, we see the Steel Bearing 3-in-1 as the sensible replacement choice for riders wanting a quiet, durable bottom bracket that will carry over to their next crankset, whether that is Shimano, SRAM or ROTOR, around Mackay and beyond.

Key Features

3-in-1 Core System — one bottom bracket body accepts Shimano HTII (24mm), SRAM DUB (28.99mm) and ROTOR 3D+ (30mm) crank spindles via interchangeable caps
TRiPEAK S-Series P05 precision steel ball bearings — 0.005mm inner-race eccentricity (out-of-roundness)
ZeroCreak construction — dual-sided locking aligns the bottom bracket to the crank spindle to stop creaking under load
Twist-Fit installation on the press-fit shells (BB30, PF30, BB86/92, BBright, BB386) makes fitting and removal easier than a plain press-fit cup
Patented Snug Fit plastic-steel bushing on press-fit shells protects the frame shell during installation and corrects shell tolerances
Bearing core is serviceable and replaceable without replacing the cups
Available across ten frame standards — BSA, ITA, T47, T47A, BB86/92, BB30, PF30, BBright and BB386

Specifications

Series: TRiPEAK S-Series
Bearing: P05 precision steel ball bearing
Inner-race eccentricity: 0.005mm
Crank compatibility: Shimano HTII 24mm, SRAM DUB 28.99mm, ROTOR 3D+ 30mm
Core system: 3-in-1 interchangeable core
Noise control: ZeroCreak
Press-fit shells: Twist-Fit installation, Snug Fit bushing
Brand: TRiPEAK (Taiwan)

Shell Standards Available

BSA 68mm: threaded 1.37" x 24T, shell width 68mm, shell dia. 34.8mm
ITA 70mm: threaded, shell width 70mm, shell dia. 36mm
T47 68/73mm: threaded T47, shell width 68mm, shell dia. 47mm
T47A 77.5mm: threaded T47 asymmetric, shell width 77.5mm, shell dia. 47mm
T47 85.5mm: threaded T47, shell width 86mm, shell dia. 47mm
BB86/92: press-fit, shell width 86mm, shell dia. 41mm
BB30 68mm: press-fit, shell width 68mm, shell dia. 42mm
PF30 68mm: press-fit, shell width 68mm, shell dia. 46mm
BBright 79mm: press-fit, shell width 79mm, shell dia. 46mm
BB386 86mm: press-fit, shell width 86mm, shell dia. 46mm

Please note: specifications are subject to change without notice.
